4x4 Articulated Dump Trucks

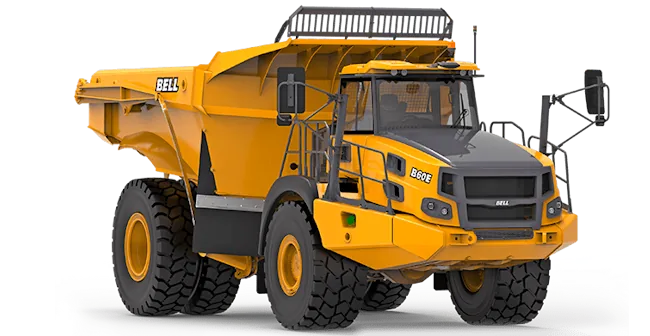

B60E 4x4 ADT
Maximum Net Power: 430 kW (577 hp)
Rated Payload: 55 000 kg (121 254 lb)
Operating Weight: 45 367 / 100 367 kg
Overview
Apart from providing best in class off-road ability, Bell Trucks provide
on board weighing and remote production monitoring to promote the best
possible productivity.
Longer life > Higher residual values
Technical Data
| Engine | Mercedes Benz OM473LA |
| Maximum Net Power | 430 kW (577 hp) |
| Certification | EU Stage IIIA |
| Transmissions | Allison 4800ORS |
| Retardation | Wet Brakes |
| Rated Payload | 55 000 kg (121 254 lb) |
| Body Capacity SAE 2:1 | 35 m� (45,8 yd�) |
| Unladen Weight | 45 367 kg (100 017 lb) |
| Laden Weight | 100 367 kg (221 271 lb) |
| Standard Tyre Size | 875/65R29 front 24.00R35 dual rear |
| Option Tyre Size | N/A |
| Onboard Weighing | Standard |
| Fleetm@tic� Telematics | Standard |
| i-Tip | Standard |
| Automatic Turbo Spindown | Standard |
| Tip Safe | Standard |
| Neutral Park Brake | Standard |
| Front Comfort Ride | Standard |
